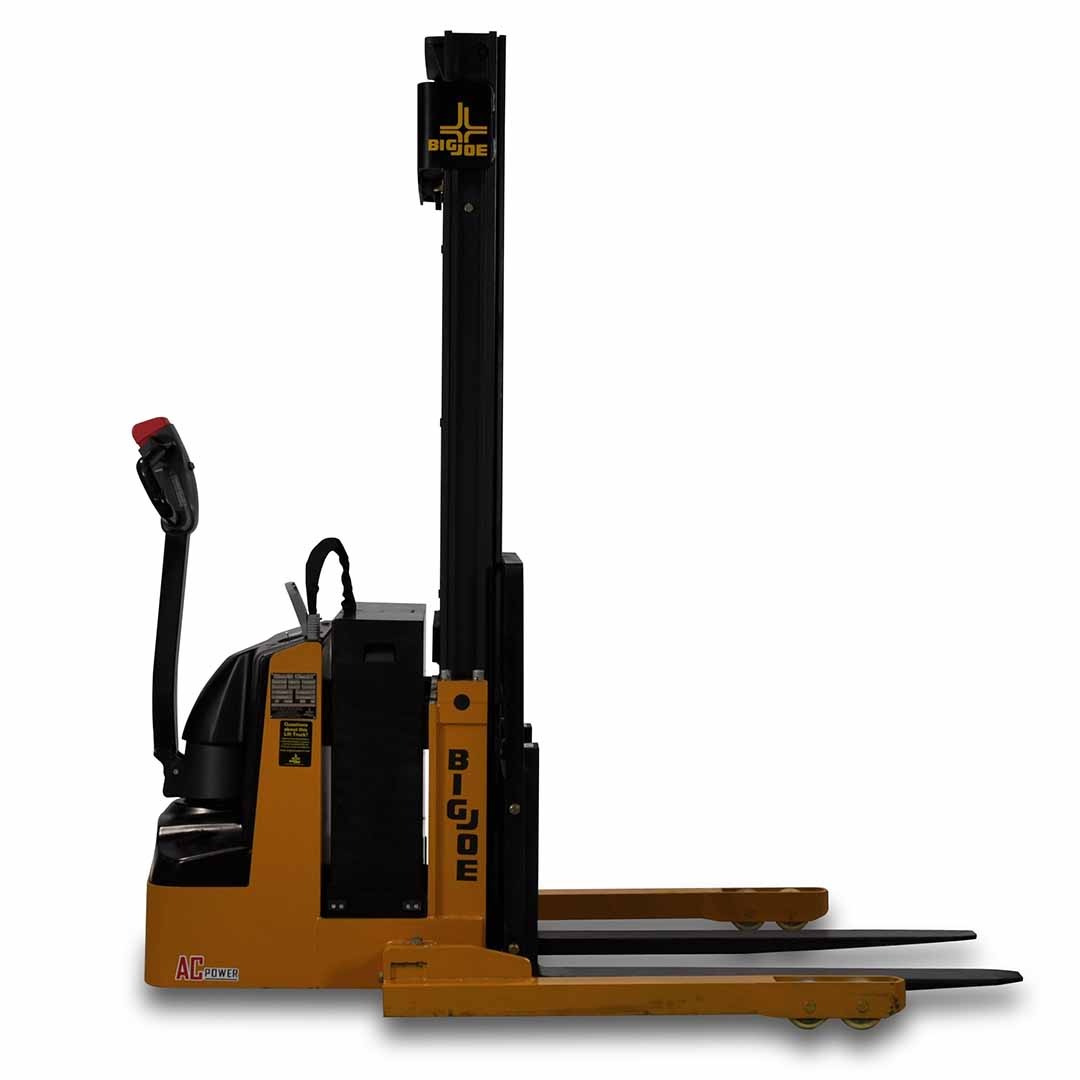

PDS25 Straddle Stacker 2500 lb. heights up to 157”
Medium Duty AC Straddle Stacker
2,500lb. capacity models with lift heights to 157″. An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.
24 volt ZAPI transistor control
High torque AC drive motor.
Double reduction helical ZF GK10 transmission
Shaft mounted electromechanical brake
Creep speed operation for tight turning in close quarters
Ergonomic handle with safety reversing switch and horn
224AH Maintenace free battery pack with integral charger
Battery discharge indicator with hour meter
Key switch to limit access to approved personnel
Walkie Straddle Stackers
2,500lbs
24″
24 volt AC electric with ZAPI transistor control-inverter
Integral to pack, 110v plug-in
42″ L x 4″ W x 1.5″ Thick
Masts available as low as 71″
60.7″
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
