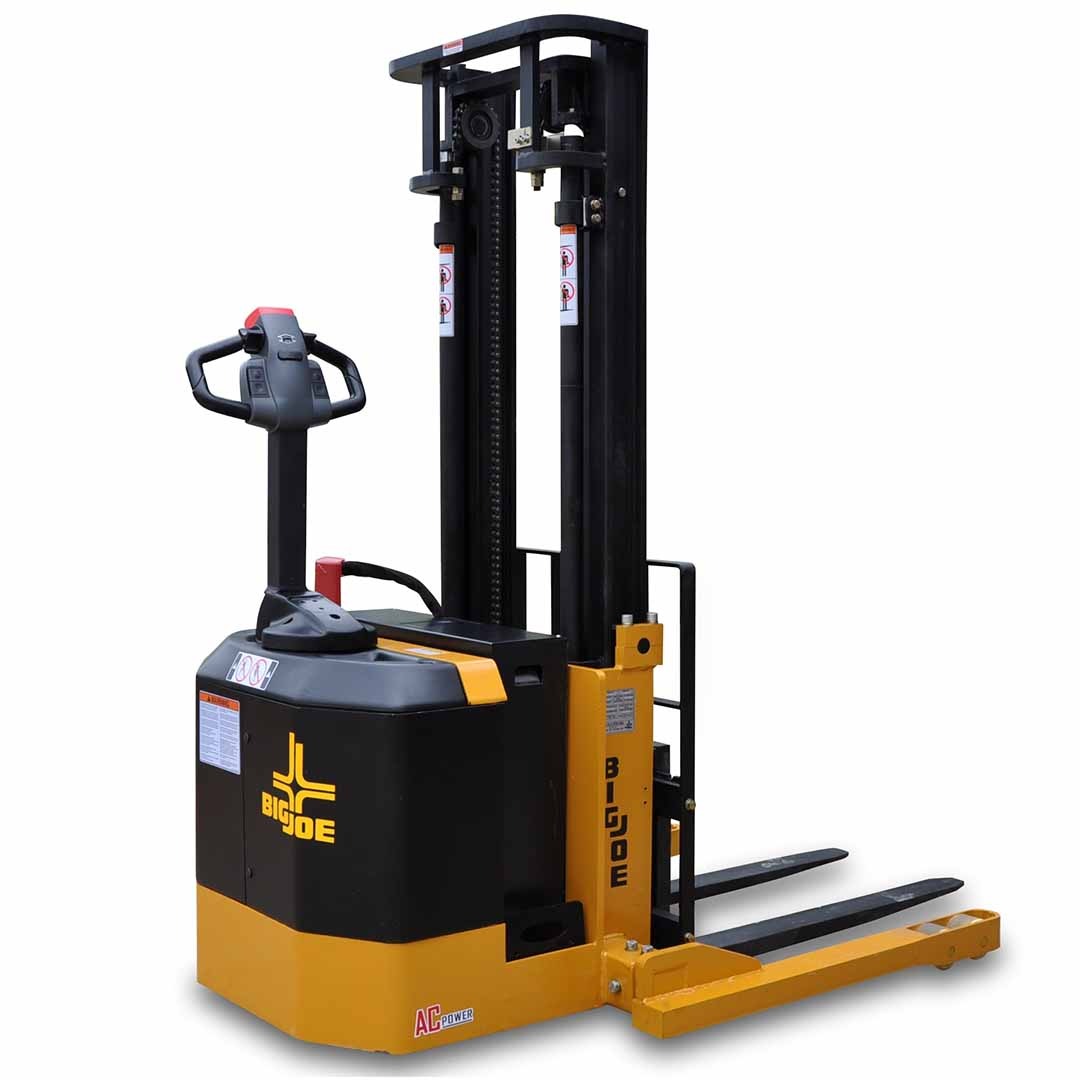

PDS30-40 Straddle Stackers, heights up to 177”
3,000lb and 4,000lb capacity models with lift heights to 177″
An easy to use and maintain truck that is a good choice for warehouse operations and other environments where space is limited.
24volt ZAPI transistor control
High torque AC drive motor.
Double reduction helical ZF GK10 transmission
Shaft mounted electromechanical brake
Creep speed operation for tight turning in close quarters
Ergonomic handle with safety reversing switch and horn
224 AH Maintenance free battery pack
Battery discharge indicator with hour meter
Key switch to limit access to approved personnel
Walkie Straddle Stackers
3,000lbs./4,000lbs.
24″
24 volt AC electric with ZAPI transistor control-inverter
Integral to pack, 110v plug-in
42″ L x 4″ W x 1.5″ Thick
Masts available as low as 71″
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
